The orange wire on a thermostat controls the heat pump’s reversing valve. This wire is crucial for switching between heating and cooling modes.
Thermostats can seem complex with their many wires. Each wire has a specific function. The orange wire, in particular, plays a key role in systems with heat pumps. When connected correctly, it ensures your home stays comfortable year-round. Understanding its purpose helps in troubleshooting and installation.
If you’re curious about what this wire does and why it’s important, you’re in the right place. This blog will explain the role of the orange wire in your thermostat system, making it easier to manage your heating and cooling needs. Let’s dive into the details and clear up any confusion.
Hvac System Basics
An HVAC system controls your home’s heating, ventilation, and air conditioning. It keeps your living space comfortable year-round. Understanding its components can help you troubleshoot issues.
Components Of Hvac
HVAC systems include several key components. These include the furnace, air conditioner, ductwork, and thermostat. Each part has a specific role in maintaining indoor comfort.
The furnace heats the air during cold weather. The air conditioner cools the air during warm weather. Ductwork distributes the air throughout your home. The thermostat controls the system’s operation.
Role Of Thermostats
The thermostat acts as the control center for your HVAC system. It allows you to set the desired temperature. It then signals the HVAC system to heat or cool the air.
Thermostats have various wires connecting them to the HVAC system. Each wire has a specific function. Understanding these wires is important for troubleshooting and repairs.
Credit: www.reddit.com
Thermostat Wiring Colors
Understanding thermostat wiring colors can seem confusing at first. Each color represents a specific function. This guide will help you decode the colors and their roles. Let’s dive into the world of thermostat wiring colors.
Standard Color Codes
Thermostat wires come in different colors. Each color has a standard function. Here are the most common ones:
- Red (R): Power from the furnace.
- White (W): Heat.
- Yellow (Y): Cooling.
- Green (G): Fan.
- Blue or Black (C): Common wire.
- Orange (O/B): Heat pump reversing valve.
Function Of Each Wire
The red wire provides power to the thermostat. It’s essential for the thermostat to function. The white wire controls the heating system. It activates the furnace or heater. The yellow wire manages the cooling system. It turns the air conditioner on and off. The green wire operates the fan. It circulates air through the system.
The blue or black wire serves as the common wire. It completes the electrical circuit. The orange wire is crucial for heat pumps. It controls the reversing valve. This valve switches the heat pump between heating and cooling modes.

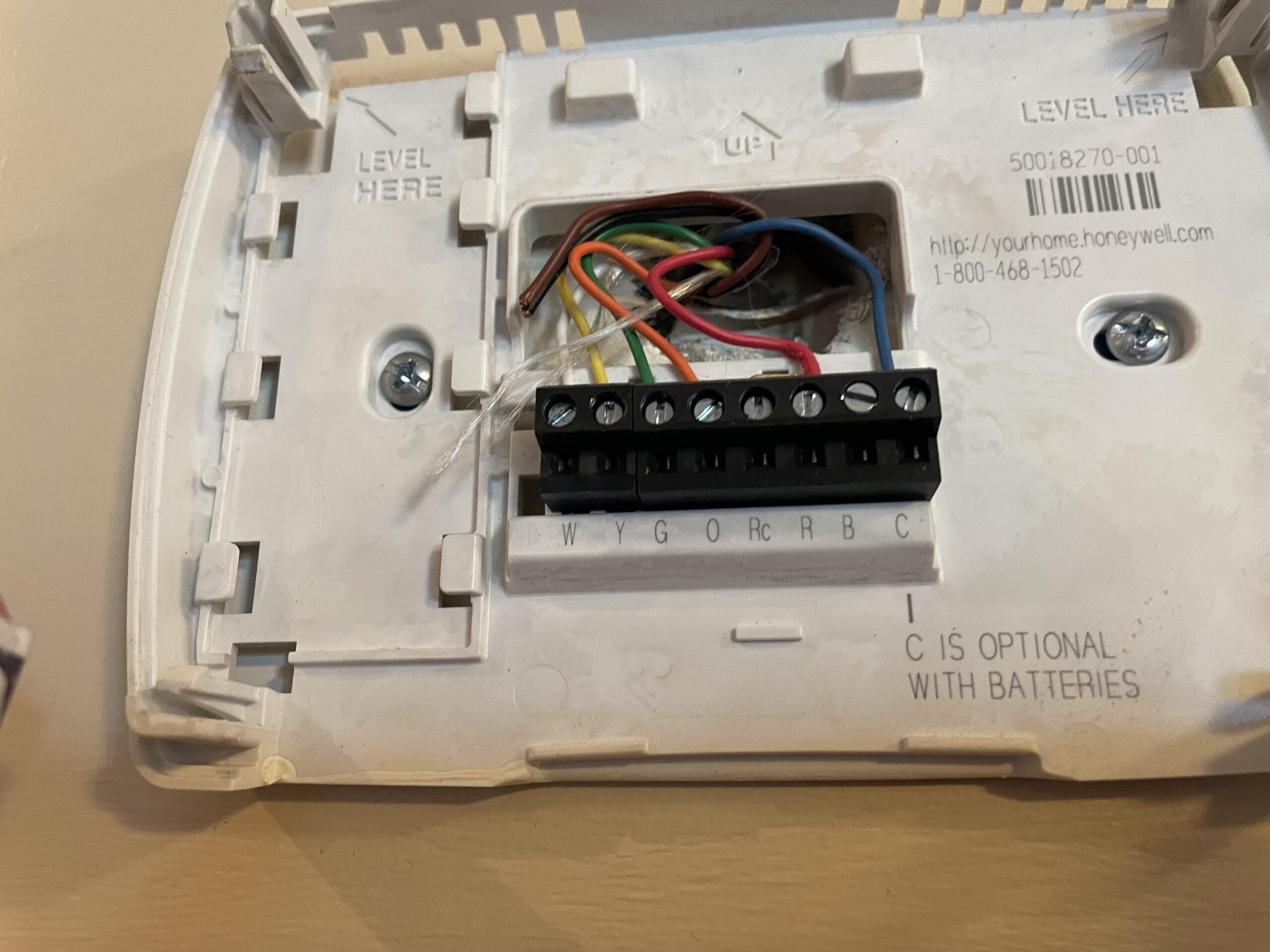

The Orange Wire
Understanding the wiring of your thermostat can be confusing. The orange wire plays an important role. This wire is usually found in specific types of HVAC systems. Knowing its purpose and compatibility can ensure your thermostat works correctly.
Purpose Of The Orange Wire
The orange wire is typically connected to the reversing valve. This valve is part of heat pump systems. The heat pump can both heat and cool your home. The orange wire signals the reversing valve to switch modes. It tells the system to cool or heat as needed.
Compatibility Considerations
Not all thermostats use an orange wire. It is specific to heat pump systems. Always check your thermostat’s manual. Ensure it supports a heat pump setup. Incorrect wiring can cause system malfunctions. Consult a professional if unsure.
Credit: diy.stackexchange.com
Installation Process
Installing the orange wire on a thermostat can seem complex. But with the right tools and a clear guide, it becomes manageable. This section breaks down the process for you. Let’s get started with the tools you need and a step-by-step guide.
Check Best Thermostat Pricing in Amazon
** As an Amazon Associate, I earn from qualifying purchases.
Tools Needed
Before you start, gather these tools. You will need:
- Screwdriver
- Wire stripper
- Needle-nose pliers
- Thermostat manual
Step-by-step Guide
Follow these steps to install the orange wire on your thermostat:
- Turn off the power to your HVAC system. Safety first.
- Remove the thermostat cover. Use a screwdriver if needed.
- Locate the orange wire. It is typically labeled ‘O’ or ‘O/B’.
- Strip the end of the orange wire. Use a wire stripper for a clean cut.
- Connect the orange wire to the ‘O’ terminal. Ensure it is tight.
- Replace the thermostat cover. Secure it with screws if required.
- Turn the power back on. Test your thermostat to ensure it works.
By following these steps, you can install the orange wire with ease.
Troubleshooting
Having trouble with your thermostat? The orange wire plays a crucial role. It’s often linked to the cooling system. When issues arise, it can disrupt your home’s comfort. Let’s explore common issues and their solutions.
Common Issues
One common problem is the air conditioner not turning on. Another issue is the air conditioner running continuously. Sometimes, the thermostat doesn’t display the correct temperature.
Solutions And Tips
Check the wire connections. Ensure the orange wire is secure. Tighten any loose wires. Reset your thermostat. This can fix minor glitches. Use a multimeter to check for electrical continuity. If there’s no continuity, replace the wire. Consult the thermostat manual. Follow the wiring diagram closely.
If the problem persists, call a professional. They can diagnose complex issues. Don’t ignore persistent problems. They can lead to bigger, costlier repairs.
Safety Precautions
Understanding the orange wire on a thermostat is important. But safety is even more crucial. Working with electrical components requires caution. Here are some safety precautions to follow.
Handling Electrical Components
Always turn off the power before touching any wires. Use a voltage tester to ensure there is no live current. Wear insulated gloves for added protection. Avoid working in wet conditions. Electricity and water do not mix.
Best Practices
Read the thermostat manual carefully. Each model can be different. Label each wire before disconnecting it. This helps in reconnecting them correctly. Keep children and pets away from the work area. Use the right tools for the job. Do not use damaged or frayed wires. Safety should always be your top priority.
Credit: diy.stackexchange.com
Frequently Asked Questions
What Does Orange Wire Connect To?
The orange wire typically connects to the thermostat, specifically for heat pump systems or as a common wire in other setups.
What Is The Orange Wire On My Ac Unit?
The orange wire on your AC unit typically controls the reversing valve, switching the system between heating and cooling modes.
What Is The Orange Wire On A Honeywell Thermostat?
The orange wire on a Honeywell thermostat controls the reversing valve in a heat pump system. It switches between heating and cooling modes.
Where Does The Orange Wire Go On My Nest Thermostat?
The orange wire connects to the O/B terminal on your Nest thermostat. This controls the heat pump’s reversing valve.
Conclusion
Understanding the orange wire on a thermostat is crucial. It typically connects to the heat pump. This wire is important for system functionality. Correct wiring ensures efficient heating and cooling. Always refer to the user manual. Consult a professional if unsure.
A well-wired thermostat boosts home comfort. Proper maintenance prevents future issues. Stay informed for a cozy home environment.
