What is the Blue Wire for in a Thermostat: Essential Guide

The blue wire in a thermostat often confuses many homeowners. It plays a crucial role in the overall functioning of your HVAC system.

Understanding the role of each wire in your thermostat is essential. It helps you troubleshoot issues and ensures proper installation. The blue wire, also known as the common wire or “C” wire, is no exception. This wire provides a continuous flow of 24V power to the thermostat, enabling it to run smoothly.

It’s particularly important for modern, smart thermostats that require constant power. By knowing the purpose of the blue wire, you can maintain your HVAC system better and avoid unnecessary complications. So, let’s dive into the details to demystify the blue wire’s function in your thermostat.

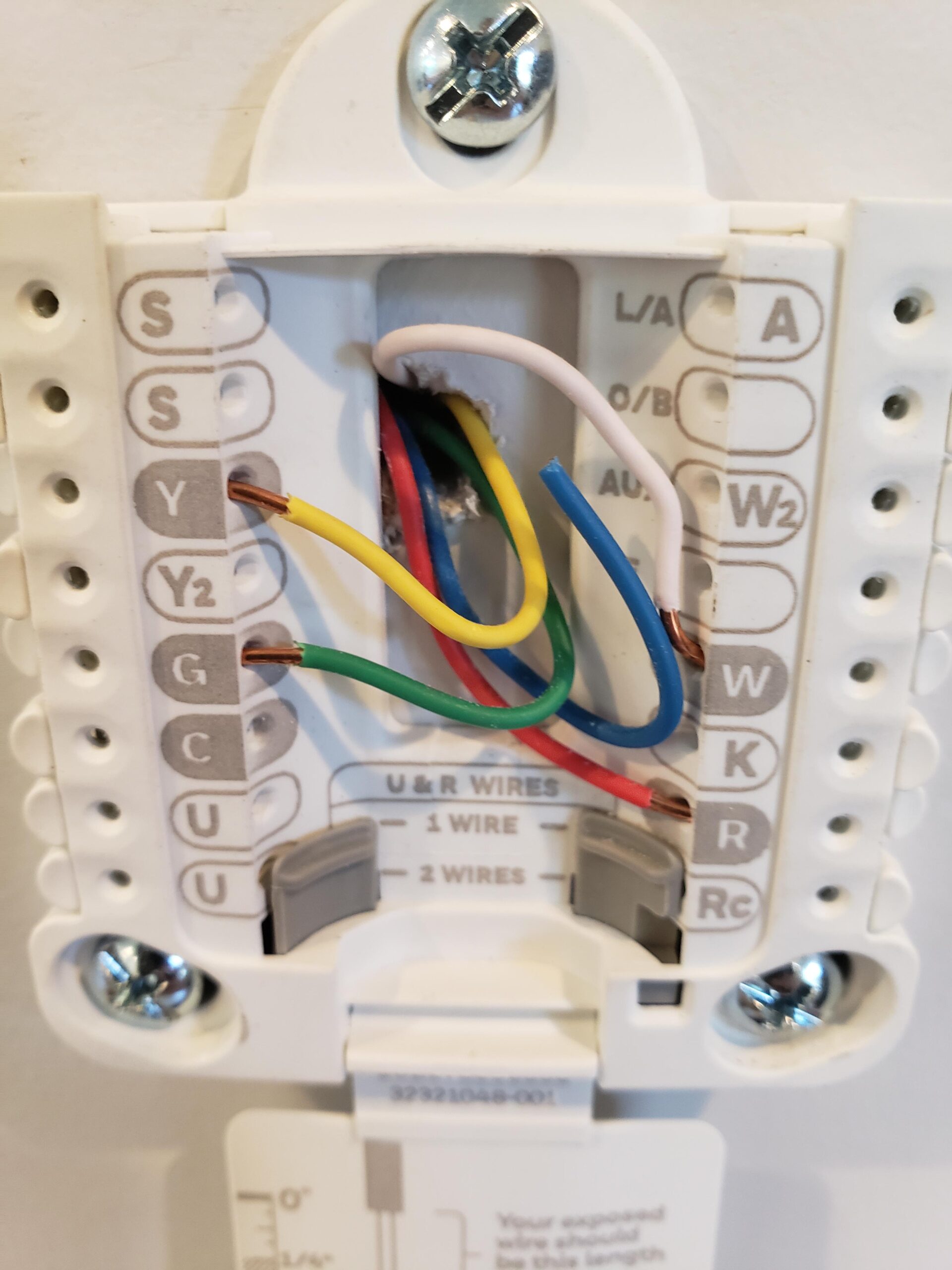

Credit: forums.wyze.com

Introduction To Thermostat Wiring

Understanding thermostat wiring can seem complicated. Many wires connect to different terminals. One common wire is the blue wire. This wire plays a crucial role in your thermostat system. This section will help you understand the basics of thermostat wiring.

Basics Of Thermostat Function

Thermostats control the temperature in your home. They signal your heating or cooling system to turn on or off. Modern thermostats can even be programmed. Some can be controlled remotely. This helps maintain a comfortable indoor environment.

Importance Of Correct Wiring

Correct wiring ensures your thermostat works properly. Incorrect wiring can cause system malfunctions. It can also damage your thermostat. Always follow the wiring diagram. This helps avoid costly repairs and ensures safety.

Understanding Thermostat Wires

Understanding the various wires in your thermostat can seem overwhelming, but it’s essential for ensuring your heating and cooling systems work efficiently. One wire you might come across is the blue wire, often called the “C” or “common” wire. Let’s dive into the different types of thermostat wires and their color coding to make things clearer.

Types Of Wires

Thermostats typically have several types of wires that connect to your HVAC system. These wires include the power wire, heating wire, cooling wire, and fan wire. Each one plays a specific role in controlling your home’s temperature and air circulation.

The blue wire, often known as the common wire, is crucial. It provides a continuous flow of power to the thermostat. This is especially important for modern, smart thermostats that need constant power to operate their advanced features.

Color Coding

Color coding helps you identify each wire’s function quickly. Most thermostats follow a standard color scheme:

• Red (R): Power from the furnace.
• White (W): Heat.
• Yellow (Y): Cooling.
• Green (G): Fan.
• Blue or Black (C): Common wire.

Have you ever installed a smart thermostat? You likely encountered the blue wire then. The common wire is necessary for delivering continuous power, essential for Wi-Fi connectivity and advanced programming features.

While the colors help, always double-check the wiring with your thermostat’s manual. This ensures you connect the wires correctly, avoiding potential damage to your HVAC system.

Understanding these wires isn’t just for electricians. If you know what each wire does, you can troubleshoot issues or install new devices with confidence. What’s stopping you from taking a closer look at your thermostat now?

Role Of The Blue Wire

The blue wire in your thermostat might seem mysterious, but it’s crucial for your HVAC system. This wire, often referred to as the “C” wire, plays a specific role in ensuring your thermostat functions efficiently. Let’s break down its common uses and specific functions to understand why it’s so important.

Common Uses

The blue wire is commonly used to provide a continuous flow of power to your thermostat. This continuous power is essential for modern thermostats that have advanced features like Wi-Fi connectivity, touchscreens, and other smart functionalities.

Without the blue wire, your thermostat might rely solely on batteries, which can be unreliable and inconvenient. Imagine waking up on a cold morning only to find your thermostat has stopped working because the batteries died. Not fun, right?

In many homes, especially older ones, the blue wire might not be present. In such cases, homeowners often face limitations with installing new smart thermostats. Ensuring your system has a blue wire can save you from future headaches.

Specific Functions

The primary function of the blue wire is to serve as a “common” wire, which closes the circuit and completes the electrical loop. This is vital for your thermostat to operate smoothly.

For instance, if you have a smart thermostat, the blue wire provides the necessary power to keep it operational 24/7. This constant power supply allows your thermostat to communicate with your HVAC system and maintain your desired temperature settings.

Additionally, the blue wire can help in reducing strain on your HVAC system. By maintaining a steady flow of power, it ensures that your system doesn’t have to work harder than necessary, which can extend its lifespan.

Have you ever faced issues with your thermostat not holding a charge or frequently resetting? Chances are, the absence of a blue wire could be the culprit. Installing or ensuring the presence of a blue wire can solve these common problems.

Does your thermostat have a blue wire? If not, it might be worth considering an upgrade or consultation with an HVAC professional. This small change can make a big difference in the performance and reliability of your thermostat.

Installation Process

The blue wire in a thermostat typically connects to the common terminal. It provides a continuous flow of power. This wire is essential for the thermostat’s operation and screen display.

Installing a thermostat might seem daunting, but breaking it down makes the process manageable. Understanding each wire’s role is key, especially the blue wire. Here’s how you can handle the installation smoothly.

Preparation Steps

First, ensure you have all necessary tools. A screwdriver, wire stripper, and a voltage tester are essential. Turn off the power to your HVAC system. This is crucial for safety. Remove the old thermostat. Keep track of how the wires are connected. Taking a picture can help you later.

Connecting The Blue Wire

The blue wire, often referred to as the common wire or C-wire, provides power to your thermostat. This is vital for smart thermostats. Locate the terminal for the C-wire on your new thermostat. It’s usually labeled “C.” Connect the blue wire to this terminal. Ensure it’s secure to avoid connectivity issues. — I remember installing my first smart thermostat. I was nervous, but following these steps made it straightforward. Have you ever felt unsure about a DIY project? Taking it one step at a time can make all the difference. With the blue wire connected, you’re on your way to a fully functional thermostat. It’s empowering to know you’ve done it yourself. What’s your next project?

Troubleshooting

Troubleshooting the blue wire in a thermostat can be tricky. The blue wire, often known as the common wire (C-wire), plays a crucial role. It powers the thermostat display. If you face issues, understanding common problems and their solutions can help.

Common Issues

Several problems can occur with the blue wire. One common issue is a loose connection. This can cause the thermostat to turn off randomly. Another issue is a damaged wire. It can prevent the thermostat from working.

Incorrect wiring is another frequent problem. If the blue wire is not connected properly, the thermostat may not receive power. This can lead to a blank display. Finally, a defective transformer can also be the culprit. It might not supply enough power to the blue wire.

Solutions

Fixing a loose connection is simple. Ensure the blue wire is securely connected to the C terminal. If the wire is damaged, you may need to replace it. Check the wire for any visible signs of wear and tear.

Rewiring the thermostat correctly can solve many issues. Follow the manufacturer’s instructions. Make sure each wire is in the correct terminal. If the transformer is faulty, replace it. A new transformer can ensure the blue wire receives proper power.

For persistent issues, consider consulting a professional. They can diagnose and fix the problem effectively.

Credit: www.reddit.com

Safety Tips

The blue wire in a thermostat is usually for the common (C) terminal. It provides a continuous flow of power. Ensuring it’s correctly connected can prevent malfunctions.

When handling your thermostat, especially the blue wire, safety should be your top priority. Incorrect wiring can lead to malfunctions, or worse, electrical hazards. By following the safety tips below, you can ensure a safer experience while dealing with your thermostat.

Avoiding Mistakes

Before you start, turn off the power supply to your thermostat. This step is crucial to avoid any risk of electric shock. Label all wires before disconnecting them to avoid confusion later. Use a voltage tester to confirm that the power is off. This small tool can save you from potential danger. Double-check your thermostat’s manual for wiring instructions specific to your model.

Professional Help

If you feel unsure about handling electrical components, seek professional help. Electricians and HVAC specialists have the expertise to handle these tasks safely. Hiring a professional might cost more upfront, but it can save you from expensive mistakes. It also ensures your thermostat will work correctly and efficiently. Do you really want to risk your safety to save a few dollars? Sometimes, it’s better to leave it to the experts. By taking these safety precautions, you can handle your thermostat’s blue wire with confidence. Whether you decide to do it yourself or hire a professional, always prioritize safety. What steps will you take to ensure a safe and successful installation?

Upgrading Your Thermostat

Upgrading your thermostat can lead to better energy efficiency and comfort. One essential factor in this process is understanding the wiring, particularly the blue wire. This small component plays a critical role in modern thermostat systems.

Smart Thermostats

Smart thermostats are becoming popular for their advanced features. They offer remote control, learning capabilities, and energy-saving modes. Understanding your thermostat’s wiring is vital for a smooth upgrade.

The blue wire, also known as the C wire, provides continuous power to your smart thermostat. This constant power supply ensures your thermostat stays connected to Wi-Fi. It also keeps the display on and all smart features functioning properly.

Compatibility

Before upgrading, check your current thermostat’s compatibility. Not all systems support smart thermostats. The blue wire is crucial for compatibility checks.

Many old thermostats lack a C wire. You might need to install one or use a power adapter. Consult your thermostat’s manual or a professional to determine the best approach.

Understanding the blue wire and ensuring compatibility can make your upgrade seamless. It can enhance your home’s comfort and energy efficiency significantly.

Credit: diy.stackexchange.com

Frequently Asked Questions

What Does The Blue Thermostat Wire Connect To?

The blue thermostat wire usually connects to the common terminal (C) on the HVAC system, providing a return path for power.

What Color Wires Go Where On A Thermostat?

Connect red wire to ‘R’ terminal, white wire to ‘W’, yellow wire to ‘Y’, green wire to ‘G’, and blue wire to ‘C’. Always refer to your thermostat’s manual.

Where Should The Blue Wire Go?

Connect the blue wire to the neutral terminal in your electrical setup. Ensure the power is off first.

What Is The Blue Wire Used For?

The blue wire is typically used as a neutral wire in electrical systems. It carries current back to the power source.

Conclusion

Understanding the blue wire in a thermostat is crucial. It powers the thermostat, ensuring it functions correctly. Knowing its role helps in troubleshooting issues. Always consult a professional for installation. Incorrect wiring can cause damage. Proper knowledge saves time and money.

Stay informed about your home appliances. This ensures a comfortable living environment. Regular maintenance is essential. Keep your thermostat working efficiently. It contributes to overall home comfort. Enjoy a well-regulated temperature year-round.
