A C wire, or common wire, is essential in modern thermostats. It supplies continuous power to your thermostat, enabling advanced features.
Understanding what a C wire does can be confusing. Many older homes lack this wire, making upgrades tricky. The C wire ensures that your smart thermostat functions efficiently. Without it, your thermostat might face power issues, limiting its capabilities. This introduction will clarify the role of a C wire, its importance in modern systems, and how it impacts your home’s heating and cooling.
Read on to learn why the C wire is crucial for your thermostat and how it can improve your home’s comfort and energy efficiency.
Introduction To C Wire
Have you ever tried to install a new thermostat only to be stumped by the mysterious C wire? You’re not alone. Understanding what a C wire is can be confusing, especially if you’re new to home improvement. But fear not! This guide will break it down for you in simple terms.
Purpose Of The C Wire
The C wire, or common wire, is essential for your thermostat’s functionality. It provides a continuous flow of 24V power to your thermostat.
This constant power supply is crucial for modern, smart thermostats. It allows them to stay connected to your Wi-Fi and perform advanced functions like learning your schedule.
Without a C wire, your thermostat might rely on battery power, which can be less reliable. This is especially important for high-tech thermostats that have touch screens and other power-consuming features.
Importance For Modern Thermostats
Why is the C wire so important for modern thermostats? Because today’s smart thermostats do a lot more than just control temperature. They connect to your home network, learn your habits, and even help you save energy.
To perform all these tasks, they need a constant power source. The C wire provides this, ensuring that your thermostat can operate all its features without interruption.
Think about it: without a C wire, you might miss out on critical features. Imagine not being able to adjust your home’s temperature from your smartphone while you’re away! That would be a bummer, right?
So, if you’re upgrading to a smart thermostat, check if you have a C wire. It’s a small detail that makes a big difference.
Do you have any tips or personal experiences with installing a thermostat? Share in the comments below!
How The C Wire Works
The C wire, or common wire, plays a critical role in modern thermostats. It provides a constant flow of power. This ensures your smart thermostat functions properly. Understanding how the C wire works can help you troubleshoot issues. It can also help you install a new thermostat with confidence.
Electrical Function
The C wire supplies a continuous 24V power to the thermostat. This power comes from your HVAC system’s control board. The control board transforms the high voltage from your home. It converts it to a lower, safer voltage. This low voltage powers your thermostat and its features.
Without a C wire, smart thermostats may face power issues. They might turn off suddenly. They might not work at all. The C wire ensures the device stays powered. This allows it to maintain settings and connectivity. It also helps in keeping the display always on.
Connection Points
The C wire connects to the C terminal on your thermostat. This terminal is usually marked with a “C” or “Common”. On the other end, the C wire connects to the HVAC control board. This board is often found in your furnace or air handler.
During installation, locating the correct C terminal is crucial. Many HVAC systems already have a C wire. If yours does not, you might need to add one. This can be done using an adapter or by running a new wire. Always consult the thermostat’s manual for specific instructions.
Correct connection ensures your smart thermostat works smoothly. It allows for full functionality. It keeps the device powered and responsive. This is vital for maintaining a comfortable home environment.

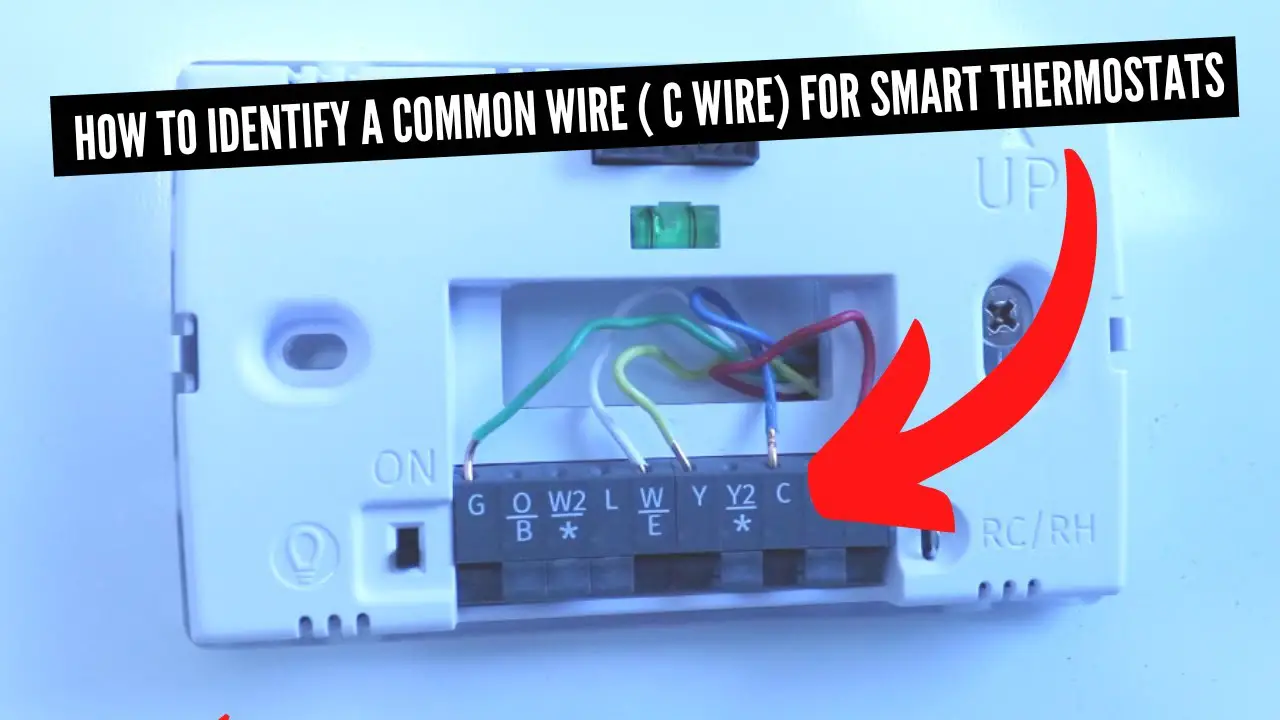

Identifying The C Wire
Understanding the purpose of the C wire on a thermostat can make a world of difference in how you manage your home’s heating and cooling system. The C wire, also known as the common wire, provides a continuous flow of power to your thermostat. This is particularly important if you have a modern, smart thermostat that requires constant power to operate its advanced features. But how do you identify if your system has a C wire? Let’s break it down.
Checking Your Thermostat
The first step in identifying the C wire is to inspect your current thermostat. Turn off the power to your HVAC system to ensure safety. Remove the thermostat faceplate to expose the wiring. Look for a wire connected to the terminal labeled “C”. If you see a wire there, you likely have a C wire. But what if there isn’t one?
Don’t panic. Some older systems don’t have a C wire. Instead, they use batteries or a different wiring setup. If you don’t see a C wire, check your HVAC control board. It’s usually located near your furnace or air handler. Look for a terminal labeled “C” and see if a wire is connected to it.
Common Wire Colors
One of the easiest ways to identify the C wire is by its color. In most cases, the C wire is blue. However, this isn’t a universal rule. It could also be black, brown, or another color. Always check the labeling on your thermostat’s terminals.
If you’re unsure, take a picture of the wiring before you start. This helps you refer back if you need to reassemble the thermostat. And don’t hesitate to consult your thermostat’s manual or an HVAC professional if you’re confused.
So, do you have a C wire on your thermostat? Knowing this can save you time and effort when upgrading to a smart thermostat. What other questions do you have about your home’s HVAC system?
Credit: www.cnet.com
Check Best Thermostat Pricing in Amazon
** As an Amazon Associate, I earn from qualifying purchases.
Benefits Of Using A C Wire
The C wire, or common wire, is essential for modern thermostats. It provides constant power to the device. This continuous power has several benefits. Let’s explore some of them below.
Enhanced Thermostat Features
Modern thermostats offer many advanced features. These include Wi-Fi connectivity, touchscreen displays, and smart home integration. A C wire supports these features. It ensures your thermostat always has the power it needs. This leads to better performance. It also means your thermostat can do more for you.
Stable Power Supply
Without a C wire, thermostats rely on batteries. This can lead to power issues. Batteries can run out. They need replacing. A C wire provides a stable power supply. This means fewer disruptions. Your thermostat works consistently. It also reduces the need for battery changes. This is more convenient for you.
Installing A C Wire
A C wire on a thermostat provides continuous power. It helps smart thermostats function efficiently. This wire connects to the heating and cooling system.
Installing a C Wire on your thermostat can seem like a daunting task, but it’s simpler than you might think. The C wire, or common wire, provides continuous power to your thermostat, ensuring it runs efficiently without draining batteries. This section will guide you through the tools needed and the step-by-step process of installing a C wire, making your home more comfortable and energy-efficient.Tools Needed
Before you start, gather the necessary tools. Having everything on hand will make the process smoother and quicker.- Phillips head screwdriver
- Flathead screwdriver
- Needle-nose pliers
- Wire stripper
- Multimeter (optional, but helpful)
- Electrical tape
- C-wire adapter (if your system requires one)
Step-by-step Guide
Let’s break down the installation process into easy-to-follow steps. Remember, safety first: always turn off the power to your HVAC system before you begin.- Turn off the power: Locate your HVAC system’s circuit breaker and switch it off. This prevents any risk of electrical shock.
- Remove the thermostat cover: Use a flathead screwdriver to carefully remove the thermostat cover. Keep the screws in a safe place.
- Identify the wires: You’ll see several wires connected to the thermostat. Look for the wire labeled ‘C’ or ‘Common’. If there isn’t one, don’t worry.
- Locate the HVAC control board: Go to your HVAC system and open the control panel. You should see a control board with similar wire labels.
- Check for unused wires: Often, there are unused wires in the thermostat cable. If you find one, you can use it as your C wire. Strip the wire ends using a wire stripper.
- Connect the C wire to the control board: Attach one end of the unused wire to the ‘C’ terminal on the control board.
- Connect the C wire to the thermostat: Go back to the thermostat and connect the other end of the wire to the ‘C’ terminal. Use the needle-nose pliers for a secure connection.
- Use a C-wire adapter if needed: If your system doesn’t have an unused wire, you might need a C-wire adapter. Follow the adapter’s instructions for installation.
- Secure and tidy up: Use electrical tape to secure any loose wires. Replace the thermostat cover and secure it with screws.
- Turn the power back on: Go back to the circuit breaker and turn the power on. Your thermostat should now have continuous power.
Credit: www.youtube.com
Troubleshooting Common Issues
The C wire on a thermostat supplies constant power to the device. It helps maintain settings and functionalities. Many modern thermostats require this wire for proper operation.
### Troubleshooting Common Issues Dealing with thermostat issues can be frustrating, especially when it’s something as simple as a C wire. The C wire, or “common” wire, is crucial for providing continuous power to your thermostat. Let’s dive into some common troubleshooting scenarios. ### No C Wire Present One of the most common issues is the absence of a C wire. If you find yourself in this situation, don’t panic. Older homes often lack a C wire, but there are solutions. You can use a power extender kit, which is a simple add-on that creates a C wire from existing connections. Alternatively, you might use a spare wire in your wall. Check behind your thermostat; there might be an unused wire that can be repurposed as a C wire. ### Incorrect Wiring Incorrect wiring can cause your thermostat to malfunction. If you’ve installed it yourself, double-check your connections. Refer to your thermostat’s manual for the correct wiring diagram. Each wire should match the terminal indicated in the guide. Sometimes, even professional installations can go wrong. If your thermostat isn’t working as expected, it might be worth hiring a professional to take a second look. Have you faced any issues while installing or troubleshooting your thermostat? What was the most unexpected challenge you encountered? Feel free to share your experiences in the comments below!Alternatives To A C Wire
When upgrading to a smart thermostat, you might encounter the need for a C wire, or common wire, to provide continuous power. Not all homes have this wire, which can create a bit of a headache. But don’t worry, there are several alternatives to a C wire that can keep your thermostat running smoothly.
Using A C Wire Adapter
A popular solution is using a C wire adapter, also known as a power extender kit. This device essentially transforms one of your existing wires into a C wire, providing the necessary continuous power.
I had this issue in my own home, and the C wire adapter was a lifesaver. It was a straightforward installation and saved me the hassle of rewiring my entire system.
Most smart thermostat manufacturers offer these adapters, so check with your thermostat brand for compatibility. It’s a cost-effective and user-friendly solution, ideal for those who aren’t keen on electrical work.
Battery-powered Thermostats
Another alternative is opting for a battery-powered thermostat. These thermostats do not require a C wire, as they rely on batteries for power.
If you prefer a hassle-free installation, this might be your best bet. Just pop in the batteries, and you’re good to go.
However, keep in mind that you’ll need to replace the batteries periodically. Set a reminder to check the battery level to avoid any unexpected power outages.
Have you faced the C wire dilemma? What solution worked best for you? Share your experiences in the comments below!
Credit: www.reddit.com
Choosing The Right Thermostat
Choosing the right thermostat can make your home’s temperature control more efficient. With many options available, it’s important to pick one that fits your needs. This section will help you understand what to look for when selecting a thermostat.
Compatibility Check
Before buying a new thermostat, ensure it’s compatible with your HVAC system. Check the type of heating and cooling system you have. Some thermostats only work with specific systems. Knowing your system type helps in choosing the right thermostat. Look for the C wire connection. It’s essential for many smart thermostats. The C wire provides constant power to the device. Without it, some models won’t function properly.
Top Thermostat Models
Several thermostat models stand out for their features and reliability. The Nest Learning Thermostat is a popular choice. It learns your schedule and adjusts the temperature automatically. Another great option is the Ecobee SmartThermostat. It includes a room sensor for more accurate temperature control. The Honeywell Home T9 is also worth considering. It offers smart room sensors and easy installation. These models are compatible with many HVAC systems and have positive user reviews. Choose one that best fits your home’s needs and your preferences.
Frequently Asked Questions
How To Find The C Wire On A Thermostat?
To find the C wire on a thermostat, remove the cover and check for a wire labeled “C” or “Common”. It usually connects to the HVAC control board.
Do I Need The C Wire On A Thermostat?
A C wire, or common wire, is often required for modern thermostats to provide continuous power. It ensures proper functionality and connectivity. Check your thermostat’s manual to confirm if it’s necessary.
What Color Is C Wire For Thermostat?
The C wire for a thermostat is typically blue. It is also sometimes black. This wire provides continuous power.
What To Do If There Is No C Wire?
Install a C-wire adapter or use a smart thermostat that doesn’t require a C wire. Consult an HVAC professional for assistance.
Conclusion
Understanding the C wire on a thermostat is essential. It provides necessary power for modern thermostats. This wire ensures your thermostat runs smoothly. Without it, some devices may not work properly. It’s a small but crucial part of your heating system.
Remember, always check if your system has a C wire. Consult a professional if unsure. Knowledge about C wire helps in making informed decisions. Always prioritize safety and efficiency in your home.
