What is a Thermostatic Expansion Valve: Essential Guide

Check Best Thermostat Pricing in Amazon

** As an Amazon Associate, I earn from qualifying purchases.

Have you ever wondered how your air conditioning system knows just the right amount of refrigerant to let through? The secret lies in a small, yet crucial component called the Thermostatic Expansion Valve (TXV).

Understanding the role of a TXV can significantly enhance your knowledge of how heating, ventilation, and air conditioning (HVAC) systems operate. Imagine having the power to optimize your home’s energy efficiency and comfort by simply knowing how this valve works.

Intrigued yet? Let’s dive deeper into what a Thermostatic Expansion Valve is, why it’s essential, and how it can impact the performance and longevity of your HVAC system. By the end of this article, you’ll gain insights that could transform the way you perceive your home’s cooling system. Are you ready to unlock the secrets behind the perfect climate control? Keep reading to find out!

Basics Of Thermostatic Expansion Valves

The basics of thermostatic expansion valves are crucial for anyone interested in optimizing their air conditioning or refrigeration systems. These devices regulate the amount of refrigerant released into the evaporator, ensuring your system runs efficiently and maintains the desired temperature. Understanding how these valves function can greatly impact the performance and longevity of your cooling systems.

What Is A Thermostatic Expansion Valve?

A thermostatic expansion valve (TXV) is a vital component in cooling systems. It controls the flow of refrigerant into the evaporator. This ensures the system operates efficiently by adjusting to varying loads and temperatures. By maintaining a balance between high and low-pressure zones, it helps achieve optimum cooling.

How Does It Work?

The TXV uses a sensing bulb to monitor temperature changes. This bulb is filled with refrigerant and attached to the evaporator outlet. As temperatures rise or fall, the pressure in the bulb changes, causing the valve to open or close. This process regulates the refrigerant flow, adapting to your system’s cooling needs.

Why Is It Important?

Imagine a hot summer day where your AC struggles to keep up. A well-functioning TXV ensures your system delivers consistent cooling performance. It prevents issues like frost buildup or inefficient cooling. By maintaining proper refrigerant flow, it extends the life of your system and saves energy.

Common Issues And Solutions

Sometimes TXVs can malfunction due to dirt or improper installation. This results in uneven cooling or increased energy consumption. Regular maintenance can prevent these issues. Cleaning the valve and checking for proper installation can keep your system running smoothly. Have you noticed fluctuating temperatures at home? It might be time to inspect your TXV.

Do You Need One?

If you’re aiming for efficient cooling, a TXV is a smart choice. It optimizes refrigerant flow, keeping your system running at peak performance. Consider your current cooling needs and evaluate whether a TXV can enhance your system. Could a simple valve upgrade be the solution to your cooling woes?

In the world of cooling systems, understanding the basics of thermostatic expansion valves can make a significant difference. Equip yourself with this knowledge, and you’re one step closer to a more efficient and reliable cooling experience.

What is a Thermostatic Expansion Valve: Essential Guide

Credit: www.danfoss.com

Functions And Importance

A thermostatic expansion valve controls the flow of refrigerant in cooling systems. It ensures efficient operation by regulating pressure and temperature. This valve plays a crucial role in maintaining optimal performance and energy efficiency in air conditioning and refrigeration units.

Thermostatic Expansion Valves (TEVs) might seem like an obscure topic, but they play a vital role in the efficiency of your cooling systems. These small yet powerful components ensure that your air conditioning or refrigeration units function smoothly and efficiently. Understanding the functions and importance of TEVs can help you maintain your systems better and even save on energy costs. So, what exactly do they do, and why should you care?

Functions Of A Thermostatic Expansion Valve

A Thermostatic Expansion Valve has a crucial job. It controls the amount of refrigerant released into the evaporator. This might sound technical, but think of it as a gatekeeper, ensuring your system doesn’t get overwhelmed. By modulating the flow of refrigerant, the TEV keeps your cooling system running at optimal efficiency. It adjusts based on the temperature and pressure, ensuring a consistent cooling effect. This means your AC or refrigerator works smoothly, without sudden temperature spikes or drops.

Importance Of A Thermostatic Expansion Valve

The importance of a TEV cannot be overstated. It helps prevent the evaporator from flooding. A flooded evaporator can lead to poor cooling performance and potentially damage your compressor. Beyond just preventing issues, a well-functioning TEV can also extend the lifespan of your equipment. By maintaining a steady flow and temperature, it reduces wear and tear on the system components. This means fewer repairs and replacements for you in the long run.

Energy Efficiency And Cost Savings

Have you noticed a spike in your energy bills? A faulty TEV might be the culprit. When a TEV functions properly, it enhances the energy efficiency of your cooling system, leading to significant cost savings. Efficient systems consume less energy, which directly impacts your bills. Plus, with the growing emphasis on sustainability, running an energy-efficient system is a win for the environment too. Are you doing your part to ensure your cooling systems are as efficient as possible?

Ease Of Maintenance

Worried about maintenance? Thermostatic Expansion Valves require minimal upkeep. Regular checks can ensure they’re functioning correctly, preventing larger issues down the line. Most of the time, a simple cleaning or adjustment can keep your TEV in top shape. This means less stress and more peace of mind for you. Could it be time to give your cooling system the attention it deserves? Understanding the functions and importance of Thermostatic Expansion Valves can drastically improve your cooling system’s performance and longevity. With just a little attention, you can ensure your system is running efficiently and save on costs. So, isn’t it time you checked on your TEV?

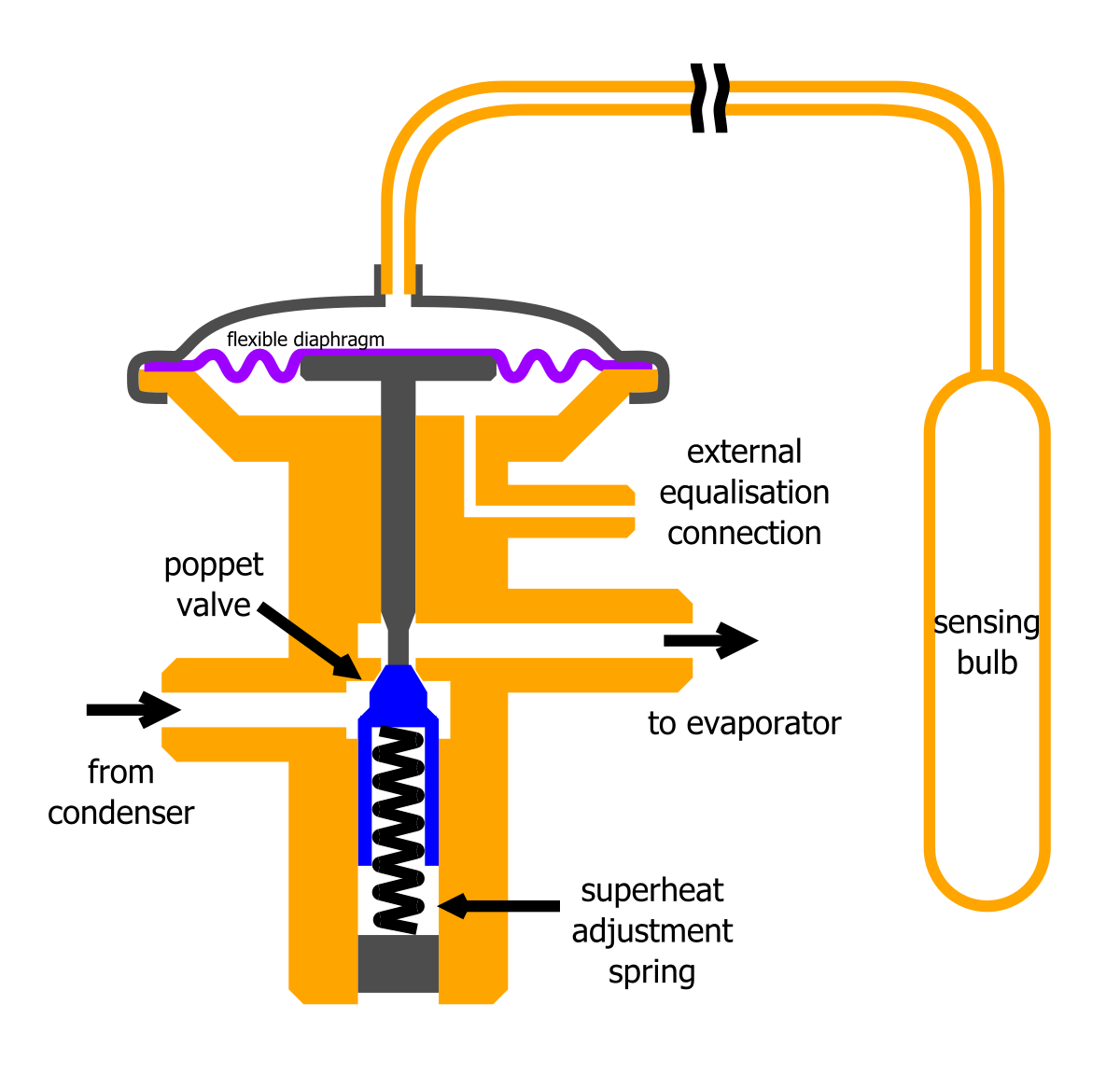

Key Components

A thermostatic expansion valve controls the flow of refrigerant in cooling systems. It has three key parts. The sensing bulb, the power element, and the needle valve. These components work together to regulate pressure and temperature. This ensures efficient cooling and energy use.

Understanding the Key Components of a thermostatic expansion valve (TXV) is essential for anyone interested in how refrigeration systems function. These components work together to regulate the flow of refrigerant, ensuring optimal performance. Let’s break down these components and see how each contributes to the valve’s operation.

Sensing Bulb

The sensing bulb is a critical component of a TXV. It’s filled with a gas or liquid that responds to temperature changes. This response helps in adjusting the valve to ensure the right amount of refrigerant flows into the evaporator coil. Have you ever noticed how your refrigerator keeps things just right? That’s the sensing bulb doing its job.

Diaphragm

The diaphragm acts like a responsive barrier. It moves based on the pressure changes transmitted by the sensing bulb. This movement is crucial because it directly influences the opening and closing of the valve. Imagine it as the heartbeat of the TXV, keeping everything in rhythm.

Valve Body

The valve body holds everything together. It’s the sturdy structure where the magic happens. Think of it as the skeleton that supports the entire system. Without a strong valve body, the whole operation could fall apart.

Adjusting Screw

The adjusting screw allows for fine-tuning. It’s where you can manually tweak the valve for specific conditions. Ever tried to adjust the volume on your speaker to get the perfect sound? The adjusting screw gives you that control, but for refrigerant flow. Understanding these components can transform how you view your cooling systems. Have you ever considered how a small part like the adjusting screw plays a big role in your air conditioner’s efficiency? Dive into your appliance manuals or have a chat with a technician next time you encounter an issue. You might be surprised at how knowledge of these key components empowers you to troubleshoot problems.

Types Of Thermostatic Expansion Valves

A thermostatic expansion valve controls the flow of refrigerant in cooling systems. There are several types, including internally equalized, externally equalized, and electronic expansion valves. Each type offers unique features and benefits, ensuring efficient temperature regulation in various cooling applications.

Understanding the various types of thermostatic expansion valves (TEVs) can significantly improve your HVAC system’s efficiency and performance. These valves play a crucial role in regulating the flow of refrigerant in air conditioning and refrigeration systems. But did you know that choosing the right type of TEV can make a world of difference? Let’s dive into the main types of TEVs and see how they can impact your system.

Internally Equalized

Internally equalized TEVs are often used in smaller systems. These valves have a single connection point, which simplifies installation. The pressure inside the evaporator coil controls the valve. This type of valve is ideal for systems with a minimal pressure drop across the evaporator. Imagine having a small air conditioning unit in your home office that needs just the right balance—not too hot, not too cold. An internally equalized valve might be the perfect fit here. It maintains a stable temperature by responding to pressure changes within the coil itself.

Externally Equalized

Externally equalized TEVs are used in systems where there is a significant pressure drop across the evaporator. This type of valve has an additional external line that compensates for the pressure drop. If you’re working with larger or more complex systems, an externally equalized valve is often necessary. Think about a bustling restaurant kitchen with multiple refrigeration units. These units require a valve that can handle more significant variations in pressure to maintain optimal cooling. Choosing the wrong type can lead to inefficiencies or even system failures. Have you ever had a refrigerator that just couldn’t keep up during a busy day? The wrong TEV could have been the culprit. Understanding these differences can empower you to make better choices for your HVAC systems. So, which type of thermostatic expansion valve does your system need? Consider your system’s size and pressure requirements to make an informed decision.

How It Works

Understanding the function of a Thermostatic Expansion Valve (TXV) can simplify the cooling process. This essential component regulates the flow of refrigerant in air conditioning systems. It ensures efficiency and optimal performance.

Refrigerant Flow Control

The TXV controls the amount of refrigerant entering the evaporator. It does this by sensing the temperature of the refrigerant. When the refrigerant is warm, it allows more to flow. When cold, it restricts the flow.

Sensing Bulb Mechanism

A sensing bulb is attached to the evaporator’s outlet. This bulb is filled with refrigerant and reacts to temperature changes. As temperature rises, the bulb pressure increases. This pressure opens the valve, allowing more refrigerant to flow.

Pressure Balance

Inside the TXV, a diaphragm balances pressure. The diaphragm responds to changes in the evaporator’s temperature. It adjusts the valve opening to maintain steady cooling. This balance ensures efficient heat exchange.

Adjustable Valve

TXVs can be adjusted for different cooling needs. Technicians can tweak the valve settings. This allows precise control over the refrigerant flow. It helps cater to specific cooling requirements.

Applications In Hvac Systems

The thermostatic expansion valve (TXV) plays a crucial role in HVAC systems. It regulates refrigerant flow, ensuring optimal cooling efficiency. Understanding its applications enhances system performance.

Applications In Residential Air Conditioning

TXVs are common in home air conditioners. They adjust refrigerant flow based on indoor temperature. This improves cooling and energy efficiency.

Check Best Thermostat Pricing in Amazon

** As an Amazon Associate, I earn from qualifying purchases.

Uses In Commercial Hvac Systems

Commercial buildings often use TXVs for precise temperature control. They handle larger cooling loads efficiently. TXVs ensure consistent comfort in office spaces.

Industrial Refrigeration Applications

Industries use TXVs to maintain specific temperatures. They ensure the right refrigerant amount for cooling processes. This is vital for food storage and manufacturing.

Role In Heat Pump Systems

Heat pumps benefit from TXVs for effective heating and cooling. They help switch between modes smoothly. TXVs ensure optimal performance year-round.

Importance In Split Air Conditioning Units

Split units utilize TXVs for precise temperature management. They adapt to varying cooling demands efficiently. This enhances user comfort and system longevity.

Common Issues And Troubleshooting

Understanding the common issues and troubleshooting of thermostatic expansion valves can save you from headaches and costly repairs. These valves are critical components in your HVAC system, controlling the refrigerant flow to maintain optimal cooling performance. However, they can face challenges like frost build-up, erratic superheat, and valve blockage. Let’s dive into these issues and discover practical solutions.

Frost Build-up

Ever opened your HVAC system and noticed frost clinging to the valves? It’s a sign of improper refrigerant flow. Frost can form when the valve is either too cold or there’s a refrigerant leak. This can lead to inefficient cooling and higher energy bills. To tackle this, ensure the valve is insulated properly. Check for any leaks and repair them promptly. Regular maintenance can prevent frost from becoming a persistent issue.

Erratic Superheat

Erratic superheat can turn your cooling system into a guessing game. Superheat refers to the temperature of the refrigerant gas above its boiling point. When it fluctuates, your system struggles to maintain consistent cooling. This can be due to a malfunctioning valve or incorrect adjustments. Verify the valve settings and adjust them as needed. If you’re unsure, consulting with a professional can provide clarity. Consistent superheat ensures your system runs smoothly and efficiently.

Valve Blockage

Blockages in the thermostatic expansion valve can halt your cooling system in its tracks. Debris or contaminants can clog the valve, restricting refrigerant flow and causing cooling issues. You might notice your system struggling to reach desired temperatures. Cleaning the valve or replacing it if necessary can restore functionality. Regular inspections can prevent blockages from developing. Keeping your valve clean is key to maintaining a healthy HVAC system.

Have you encountered any of these issues with your thermostatic expansion valve? What steps did you take to resolve them? By sharing your experiences, you can help others navigate these common challenges. Remember, proactive maintenance is your best friend in avoiding these issues. Regular checks and adjustments can keep your HVAC system running at its peak.

What is a Thermostatic Expansion Valve: Essential Guide

Credit: intersam.es

Maintenance Tips

A thermostatic expansion valve controls the flow of refrigerant in an air conditioning system. It ensures the system runs efficiently by regulating the refrigerant based on temperature changes. Proper maintenance involves checking for leaks and ensuring clean filters to keep it functioning smoothly.

Maintaining a thermostatic expansion valve (TEV) is crucial for ensuring optimal performance of your HVAC system. Proper maintenance not only extends the life of the valve but also improves the efficiency of your cooling system. Let’s dive into some practical tips that can help you keep your TEV in tip-top shape.

Inspect Regularly

Regular inspection is key to maintaining your TEV. Make it a routine to check for signs of wear and tear. Look for any visible damage or leaks around the valve. A simple visual check can reveal potential issues before they become major problems.

Clean The Valve

Dust and debris can accumulate on the TEV, affecting its performance. Use a soft brush or cloth to gently clean the valve. Avoid using harsh chemicals that might damage the components. A clean valve functions more efficiently and helps maintain consistent cooling.

Check For Blockages

Blocked valves can hinder the flow of refrigerant, causing inefficiencies. Remove any blockages you find in the valve or its surrounding area. Ensure that the pathways for refrigerant are clear to maintain smooth operation.

Monitor System Performance

Pay attention to your HVAC system’s performance. Is the cooling less effective than usual? This might indicate a problem with the TEV. Use performance metrics, like temperature readings, to diagnose issues early. A well-maintained valve contributes to consistent cooling levels.

Adjust Superheat Settings

Superheat settings are crucial for TEV functionality. Check and adjust these settings as necessary. Incorrect superheat can lead to inefficient cooling or even system damage. Consult your system’s manual for guidance on setting the correct superheat levels.

Consult A Professional

When in doubt, consult a professional. It’s always better to seek expert advice if you’re unsure about the condition of your TEV. Professionals can provide valuable insights and ensure your valve is functioning correctly. Sometimes, a second opinion can prevent costly repairs down the road. Regular maintenance of your thermostatic expansion valve can save you time and money. Why risk system downtime when a few simple steps can keep your cooling system running smoothly?

Advantages And Limitations

A thermostatic expansion valve offers precise control of refrigerant flow, enhancing energy efficiency. Yet, it can be complex to install and maintain, requiring skilled technicians.

Understanding the advantages and limitations of a thermostatic expansion valve (TEV) is crucial for anyone dealing with HVAC systems. Whether you’re a homeowner, technician, or someone curious about how your air conditioning system works, knowing what TEVs bring to the table can help you make informed decisions. This knowledge ensures you can maintain your system efficiently and avoid unnecessary costs. Let’s dive into the specifics and see how TEVs can be both a boon and a bit of a challenge.

Advantages Of A Thermostatic Expansion Valve

A thermostatic expansion valve offers precise control over refrigerant flow. This precise control ensures that your system operates efficiently, optimizing energy consumption. You’ll likely notice a reduction in your energy bills, which is always a pleasant surprise. TEVs adapt to varying load conditions, providing comfort regardless of the weather. Whether it’s a scorching summer day or a cooler evening, the valve adjusts the refrigerant flow accordingly. This adaptability enhances the longevity of your HVAC system by reducing wear and tear. Installing a TEV can improve overall system performance. By maintaining the correct superheat, the evaporator is protected from liquid floodback. This minimizes potential damage and extends the life of your compressor.

Limitations Of A Thermostatic Expansion Valve

Despite their benefits, TEVs have some limitations. Installation can be complex, requiring precise adjustments. If not set correctly, you might experience inefficient cooling or heating, leading to discomfort and higher energy use. TEVs are sensitive to dirt and debris. Any contaminants in the system can hinder the valve’s performance. Regular maintenance is key to ensuring the valve functions effectively, but this can be a time-consuming task for some. Cost can also be a factor. TEVs are generally more expensive than simple capillary tube systems. However, the initial investment often pays off in long-term savings and efficiency. — When thinking about your HVAC system, consider whether a TEV is the right choice for your needs. Do you prioritize energy efficiency and precise control, or are you looking for a simpler, less costly solution? Weighing these advantages and limitations will guide you in making the best decision for your comfort and budget.
What is a Thermostatic Expansion Valve: Essential Guide

Credit: www.preair.com

Frequently Asked Questions

What Is The Function Of Thermostatic Expansion Valve?

A thermostatic expansion valve controls refrigerant flow to the evaporator. It ensures optimal cooling by regulating pressure and temperature. This enhances efficiency and prevents frost buildup, maintaining a stable system operation.

What Happens When The Thermal Expansion Valve Goes Bad?

A faulty thermal expansion valve can cause irregular cooling, reduced efficiency, and increased energy bills. It might lead to frost on the evaporator coil or hissing noises. Immediate attention is needed to prevent further HVAC system damage.

How Long Do Txv Valves Last?

TXV valves typically last 10 to 20 years with proper maintenance. Factors like usage, environment, and maintenance impact lifespan. Regular inspections and servicing extend their durability. Always consult a professional for issues, ensuring optimal performance.

How Does A Thermostatic Valve Work?

A thermostatic valve controls water temperature by adjusting the mix of hot and cold water. It uses a thermostat to sense temperature changes, automatically maintaining the desired setting. This ensures a consistent and safe water temperature, enhancing comfort and preventing scalding.

Conclusion

A thermostatic expansion valve controls refrigerant flow in cooling systems. It balances temperature and pressure for efficiency. This small device plays a big role in air conditioning. Understanding its function helps maintain your system. Proper maintenance ensures it works well.

A faulty valve can lead to issues. Regular checks can prevent costly repairs. Knowledge of this valve aids in better system care. Keep your cooling system efficient and reliable. Remember, a little attention goes a long way. Stay cool and comfortable with a well-functioning valve.
