What is a Common Wire on a Thermostat: Essential Guide

A common wire, also known as a C-wire, is essential for many modern thermostats. It provides continuous power to the thermostat, ensuring it functions smoothly.

Understanding a common wire can simplify your thermostat installation. Many homeowners face confusion about this wire. The C-wire connects to your HVAC system. It ensures your smart thermostat stays powered. Without it, some features may not work. In older homes, a C-wire might be missing.

This can complicate upgrades to new thermostats. Knowing its role helps prevent installation issues. Let’s explore why the common wire is important and how it affects your thermostat. This knowledge can save you time and effort during setup.

Introduction To Common Wires

Common wires, or C-wires, play a crucial role in modern thermostats. Many people may not know what these wires do. Understanding common wires is important for anyone using a smart thermostat. This knowledge helps in ensuring proper installation and functioning.

Purpose Of Common Wires

The common wire provides a continuous flow of electricity. This is essential for powering the thermostat. C-wires are usually blue or black. They connect the thermostat to the heating and cooling system. Without a C-wire, many thermostats will not work properly. This wire ensures that the thermostat has a constant power supply.

Importance In Thermostats

Smart thermostats need a stable power source. The common wire provides this stability. It keeps the thermostat running even when it is not actively heating or cooling. This is important for maintaining settings and connectivity. A stable power source helps in saving energy and money.

Installing a thermostat without a C-wire can be challenging. Some older systems may not have a C-wire. In such cases, an adapter or a professional installation may be required. Knowing about the common wire can save time and avoid complications.

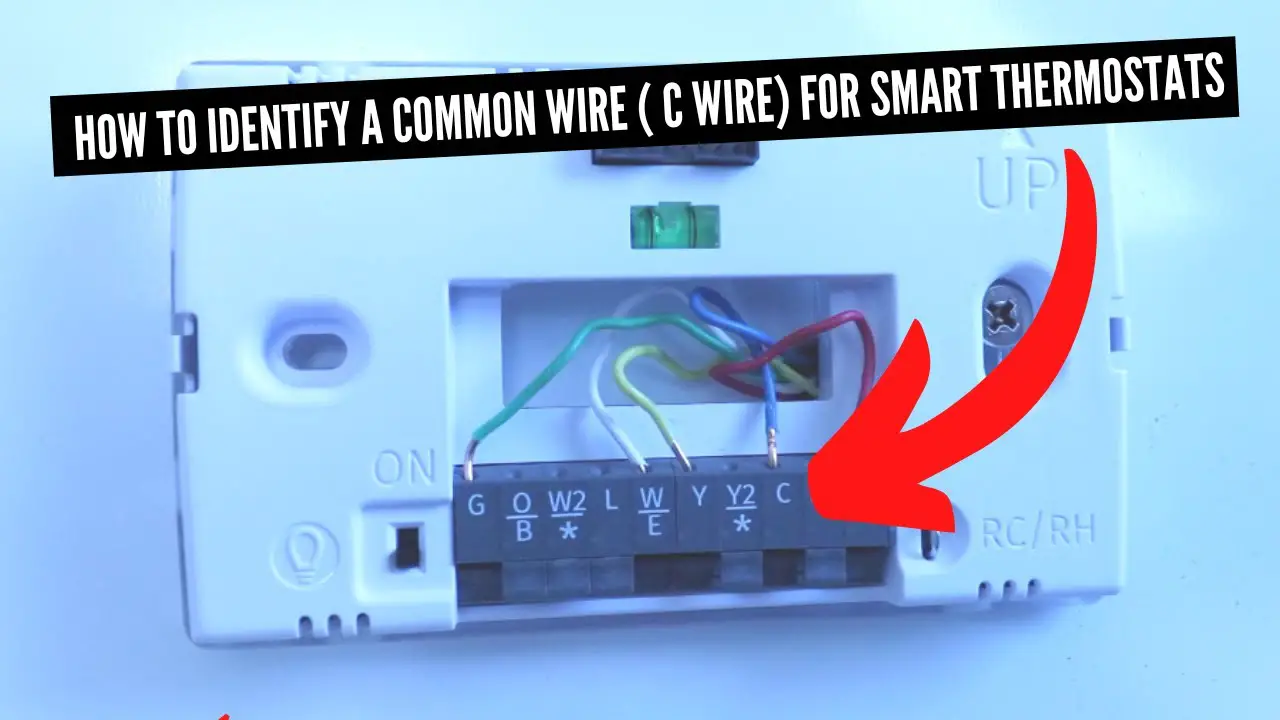

Identifying Common Wires

A common wire on a thermostat, often labeled as “C,” provides continuous power to the thermostat. This wire ensures the device stays on, even when other systems are off. Understanding this wire is key for proper thermostat installation.

Identifying Common Wires When working with a thermostat, identifying the common wire (often referred to as the “C-wire”) is crucial. This wire provides continuous power to your thermostat, allowing it to control your heating and cooling system efficiently. Without the C-wire, many modern thermostats won’t function properly. Let’s dive into how you can identify these common wires effectively.

Color Codes

The easiest way to identify a common wire is through its color. Typically, the C-wire is blue or black. However, color codes can sometimes vary depending on the manufacturer or the person who installed your HVAC system. If you see a blue or black wire connected to the C terminal on your thermostat, it’s likely your C-wire. Always double-check by referring to your HVAC system’s wiring diagram or manual.

Typical Locations

Common wires are often found connected to the C terminal on your thermostat and your HVAC control board. When you remove your thermostat from the wall, you should see multiple wires connected to different terminals. Look for the terminal labeled “C”. This is where the common wire should be connected. Another place to check is your HVAC control board, usually located inside the furnace or air handler. The C-wire will be connected to a terminal labeled “C” on the control board as well. If you’re unsure, you might want to use a multimeter to check for a 24-volt power source, which confirms the wire is indeed a C-wire. Identifying the common wire might seem daunting at first, but with these tips, you can handle it with confidence. Have you ever had trouble identifying a C-wire in your HVAC system? What tricks did you find most helpful? Share your experiences in the comments below!

How Common Wires Work

A common wire on a thermostat, often labeled as “C,” provides continuous power to the device. This wire connects the thermostat to the HVAC system, ensuring it stays powered.

Understanding how common wires work can demystify some of the intricacies of thermostat installation and operation. A common wire, often referred to as a “C-wire,” is essential for providing a continuous flow of electricity to your thermostat. This ensures your thermostat has the power it needs to function properly, especially for more advanced models that require a constant power supply.

Power Supply Role

The common wire plays a crucial role in supplying power to your thermostat. It connects directly to the HVAC system, providing the necessary energy to keep your thermostat running. Without a C-wire, your thermostat might rely solely on batteries, which can die unexpectedly and require frequent replacements. Think about it like this: the C-wire is like having a charger constantly plugged into your device. You never have to worry about your thermostat suddenly shutting off because the batteries are dead. This continuous power supply is especially important for smart thermostats that have features like Wi-Fi connectivity, touchscreens, and advanced sensors.

Compatibility With Modern Thermostats

Modern thermostats often come with a variety of features that require more power than older models. Smart thermostats, for instance, need a constant power source to stay connected to your home network and to perform tasks like learning your schedule and adjusting the temperature automatically. Many older homes might not have a C-wire already installed, which can be a hurdle when upgrading to a new thermostat. However, most modern thermostats include workarounds for this, like power extender kits or the ability to use existing wires in your HVAC system in different ways. Before you purchase a new thermostat, it’s a good idea to check if your current setup includes a C-wire. If not, you might need to add one or use an adapter. This small step can make a big difference in the performance and reliability of your new thermostat. Have you ever wondered why your thermostat suddenly loses connection or fails to respond? It could be because it’s not receiving a consistent power supply. Ensuring your thermostat has a C-wire can solve many of these common issues, making your home comfort system more reliable and efficient.

Credit: linkdhome.com

Installing A Common Wire

Installing a common wire on a thermostat can seem daunting. But with the right tools and a clear guide, it becomes manageable. A common wire, or C-wire, provides continuous power to your thermostat. This ensures it operates effectively. Let’s look at the necessary tools and a step-by-step guide.

Necessary Tools

Before starting, gather all required tools. You will need a screwdriver, wire stripper, and a voltage tester. Having wire connectors and electrical tape is also helpful. Ensure you have the thermostat’s manual handy.

Step-by-step Guide

First, turn off the power to your HVAC system. This ensures safety while working with wires.

Next, remove the thermostat’s faceplate. Use the screwdriver to unscrew it from the wall.

Find the C-wire in your thermostat’s wiring. If you do not have one, locate an unused wire. This wire can often be found in your existing bundle.

Use the wire stripper to strip the end of the C-wire. Attach it to the C terminal on your thermostat.

Secure the wire with a wire connector. Wrap it with electrical tape for added safety.

Reattach the thermostat faceplate. Then, turn the power back on to your HVAC system.

Finally, check if the thermostat is receiving power. If all steps are followed correctly, your thermostat should work smoothly.

Troubleshooting Common Wire Issues

Having trouble with your thermostat’s common wire, or C-wire? You’re not alone. Many homeowners face issues with their C-wire, which is essential for powering smart thermostats. Let’s dive into some common problems and effective solutions to get your thermostat working properly again.

Common Problems

The most frequent issue is a missing C-wire. Older homes may not have one. Another problem is a disconnected or broken wire. This can happen during installation or maintenance. Incorrect wiring can also cause issues. Mistaking another wire for the C-wire leads to malfunctions. Voltage issues may arise, causing the thermostat to not function correctly. Finally, a faulty thermostat might be the culprit.

Effective Solutions

If your home lacks a C-wire, installing one is the best solution. Use a C-wire adapter if rewiring is not feasible. Check for any loose or broken wires. Ensure all connections are secure. Verify the wiring configuration matches the thermostat manual. Use a multimeter to check voltage levels. Ensure the voltage is within the required range. If the thermostat is faulty, consider replacing it. A new, compatible thermostat can resolve persistent issues.

Credit: www.cnet.com

Benefits Of Using Common Wires

The common wire, often called the C-wire, is an essential component in many modern thermostats. It provides a continuous flow of electricity to the thermostat, enabling it to function more effectively. Using a common wire offers numerous benefits that enhance the performance and efficiency of your HVAC system.

Enhanced System Performance

With a common wire, your thermostat gets a steady power supply. This stability allows it to operate more efficiently. The thermostat can maintain more accurate temperature control. It also supports advanced features like Wi-Fi connectivity and smart home integration. These features improve the overall performance of your HVAC system.

Energy Efficiency

A common wire helps your thermostat run more efficiently. It can power the thermostat without relying on batteries. This reduces energy consumption and can lower your utility bills. It also supports features like learning your schedule and adjusting temperatures accordingly. These energy-saving features make your home more efficient.

Alternatives To Common Wires

When installing a smart thermostat, you might encounter a need for a common wire, also known as a “C-wire.” However, not every home has one. Fortunately, there are alternatives to common wires that can help you power your thermostat efficiently.

Battery-powered Options

Battery-powered thermostats are a simple alternative to using a common wire. These devices run on batteries, eliminating the need for a C-wire. They are easy to install and maintain.

Many modern thermostats come with battery backup features. This ensures your settings are saved even during a power outage. However, you will need to change the batteries periodically.

Using a battery-powered thermostat can be a hassle-free solution. Have you ever wondered how often you forget to check the batteries? Keeping spare batteries handy can save you from unexpected issues.

Power Extenders

Another alternative is using a power extender kit. These kits are designed to provide the necessary power to your thermostat without a C-wire. They work by redistributing power from other wires.

Installing a power extender kit might seem daunting at first. But most kits come with detailed instructions. Plus, many manufacturers offer customer support to guide you through the process.

Consider your comfort with DIY projects. Would you prefer to install the kit yourself or hire a professional? Either way, power extenders are a viable solution to bypass the need for a common wire.

Choosing the right alternative depends on your preferences and technical skills. Whether you opt for battery-powered options or power extenders, you can enjoy the benefits of a smart thermostat without the hassle of rewiring your home. What solution do you think suits your needs best?

Credit: www.reddit.com

Frequently Asked Questions

How Do I Find The Common Wire On My Thermostat?

To find the common wire on your thermostat, look for the terminal labeled “C” or “Common. ” Check your thermostat’s manual for guidance.

Does A Thermostat Need A Common Wire?

A common wire (C-wire) is necessary for many modern thermostats. It provides continuous power for features like Wi-Fi and display.

What Color Is A Common Wire Thermostat?

A common wire thermostat is usually red. This wire, also known as the “R” wire, provides power.

What To Do If There Is No C Wire?

Install a C-wire adapter or use a thermostat that doesn’t require a C-wire. Consult an electrician if unsure.

Conclusion

Understanding the common wire on a thermostat is crucial. It helps in powering the device efficiently. Without it, your thermostat may not function correctly. Proper installation ensures better performance. It can save you time and frustration. Always check your system compatibility.

This simple step can prevent many issues. Consult a professional if unsure. Your comfort depends on a correctly wired thermostat. Make informed decisions for a smoother experience.
